advantages

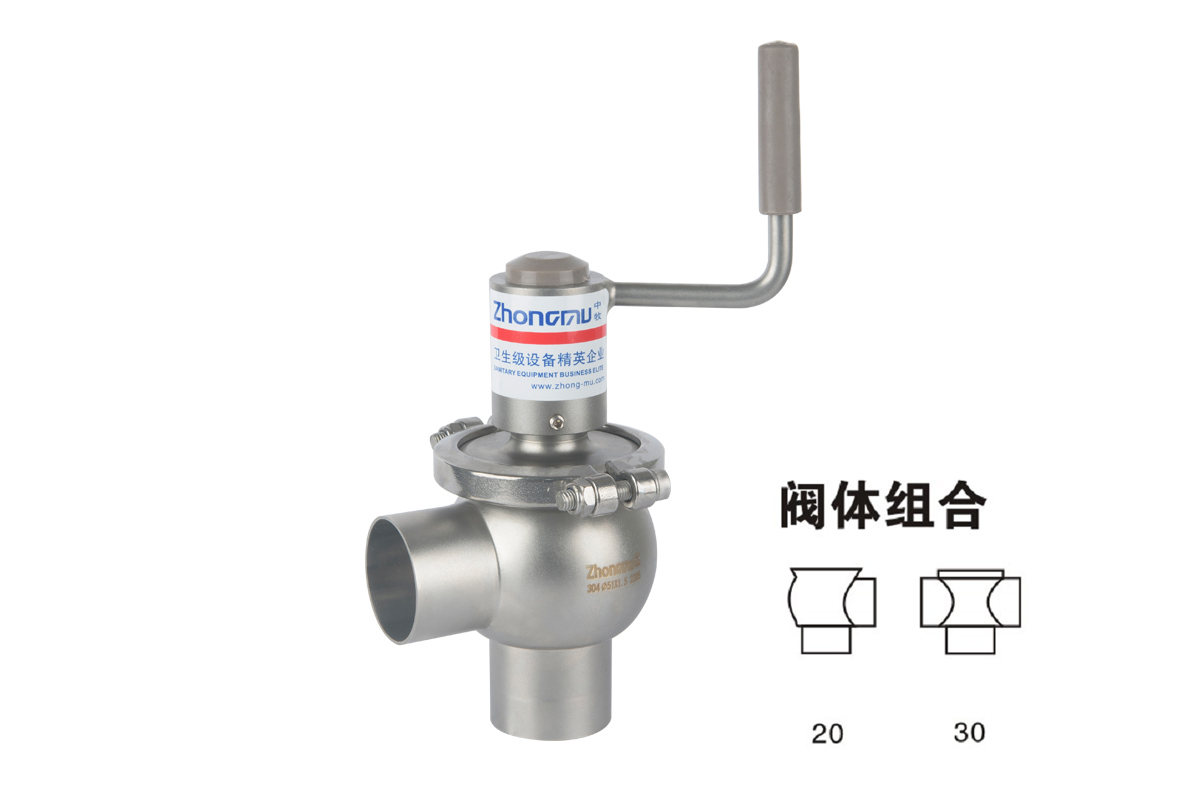

Health type manual stop/reversing valve by manual crank gear to make the valve opened step by step, all the parts through the clamp and stem clamp connection, for ease of installation, with an open bracket, bracket is separated from the body, easy to clean. Manual type valve can be easily converted into a type pneumatic valve, just put the hand crank for driving devices.
Specifications: 1 '4', DN25 - DN100
Connection mode: welding, clamp, thread, flange
Material: 304/316 l
Seal: standard EPDM and silicone, fluorine rubber can be used
Work style: manually
Sandblasting surface treatment: mirror inside
Temperature range: - 10 ℃ to + 95 ℃
The maximum product pressure: 10 bar
Minimum pressure of products: vacuum
